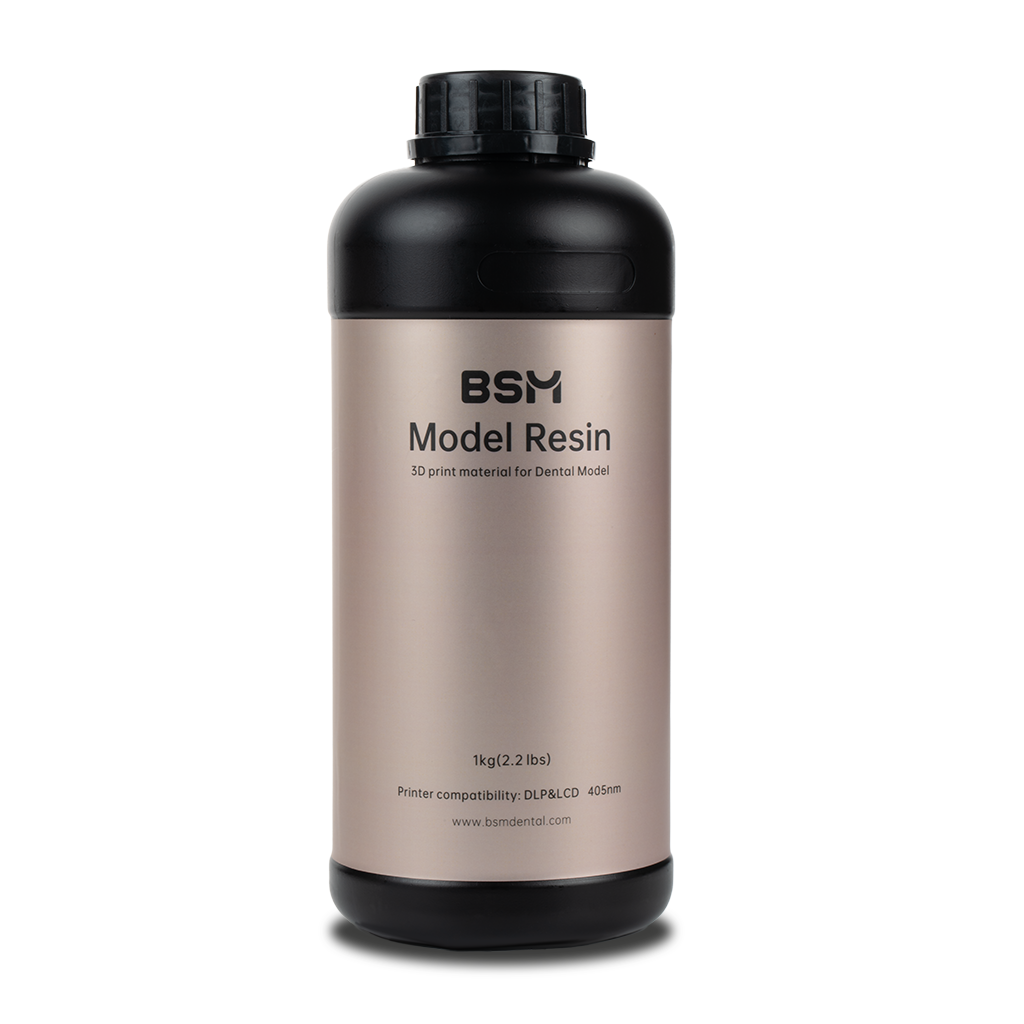

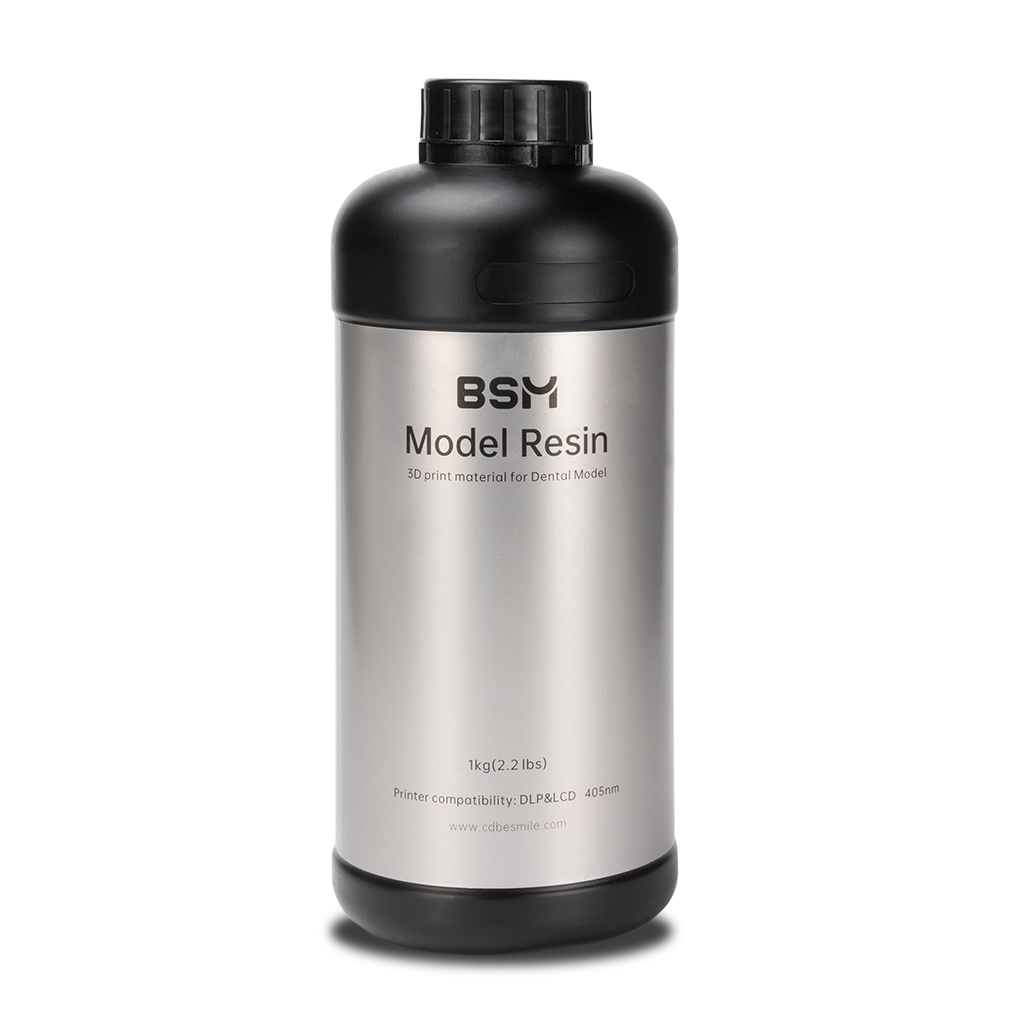

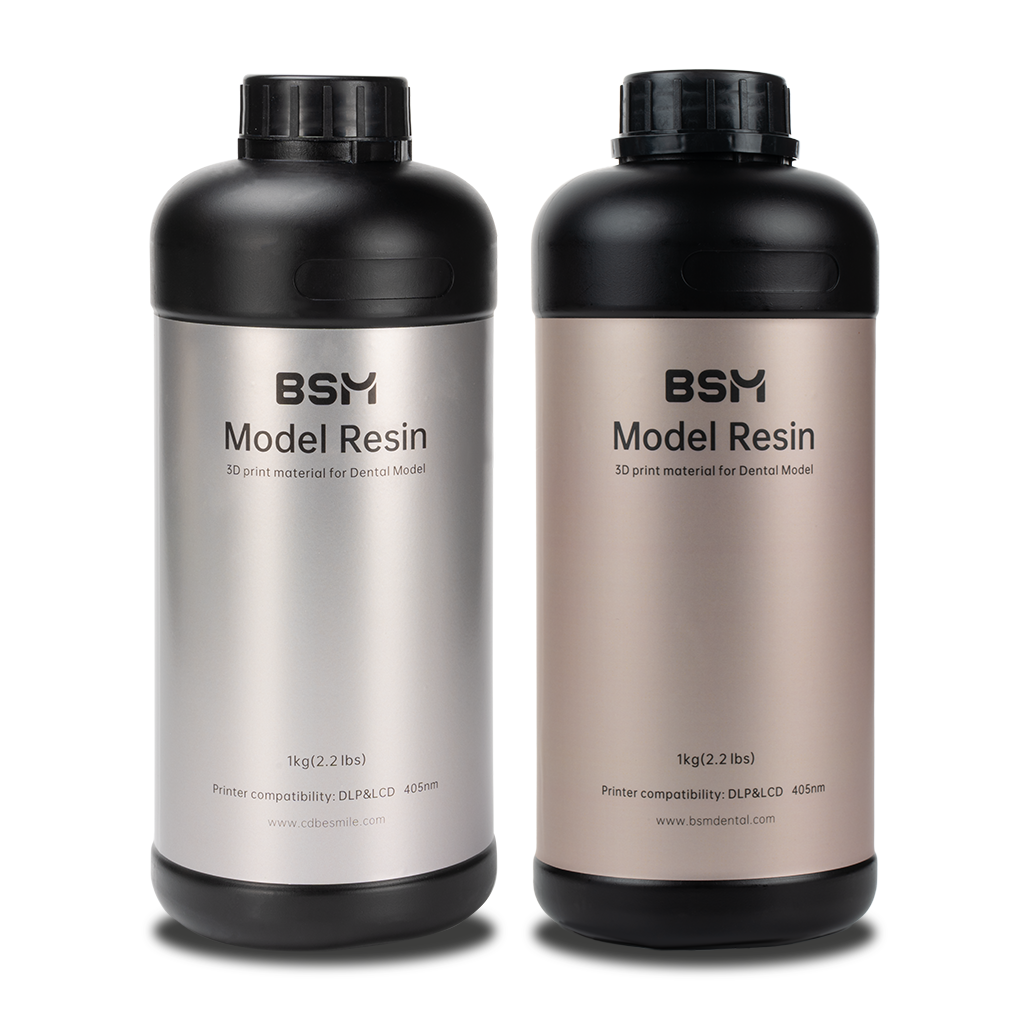

BSM Model Resin beige/gray

Description

Instructions for use.pdf
Safety Data Sheet

Printing time approx. 60 min
One bottle of model resin (1 kg) can be used to print 30-35 models.
High precision, low deformation. The printed model retains a dimensional stability of 97 % after 7 days and ≥90 % after 15 days.

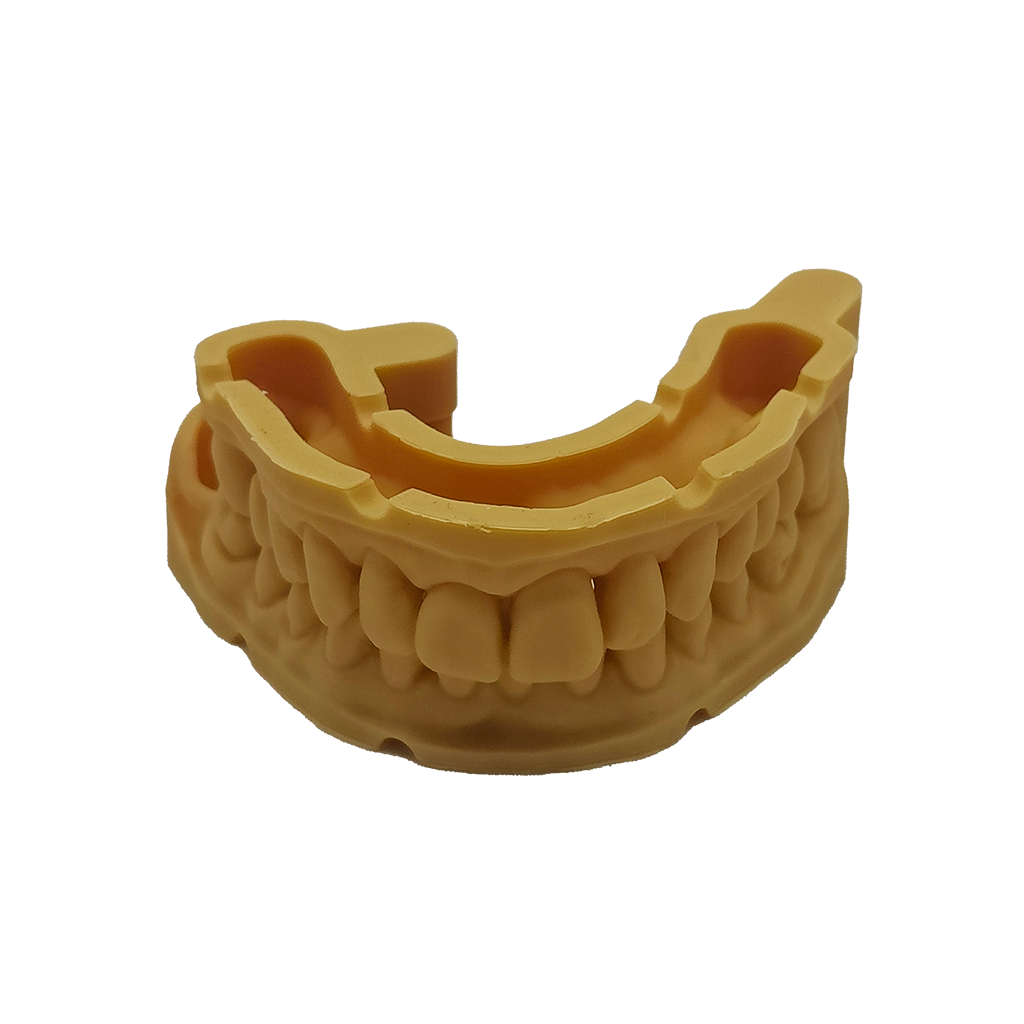

Color beige
Appearance Liquid
Viscosity 260 cps (25 °C)
Shrinkage 0.2 %
Exposure time (0.05
mm/layer)
2-10 seconds (LED light source 405 nm,
Light intensity >1.0 Mw/cm(2))
Tensile strength 45 MPa
Tensile modulus 560 MPa
Flexural strength 48 MPa
Bending modulus 1750 MPa
Shore hardness 82 D
Density 1.08 g/cm(3)
Heat distortion temperature 82 ℃
Notched Izod impact strength 31 j/m

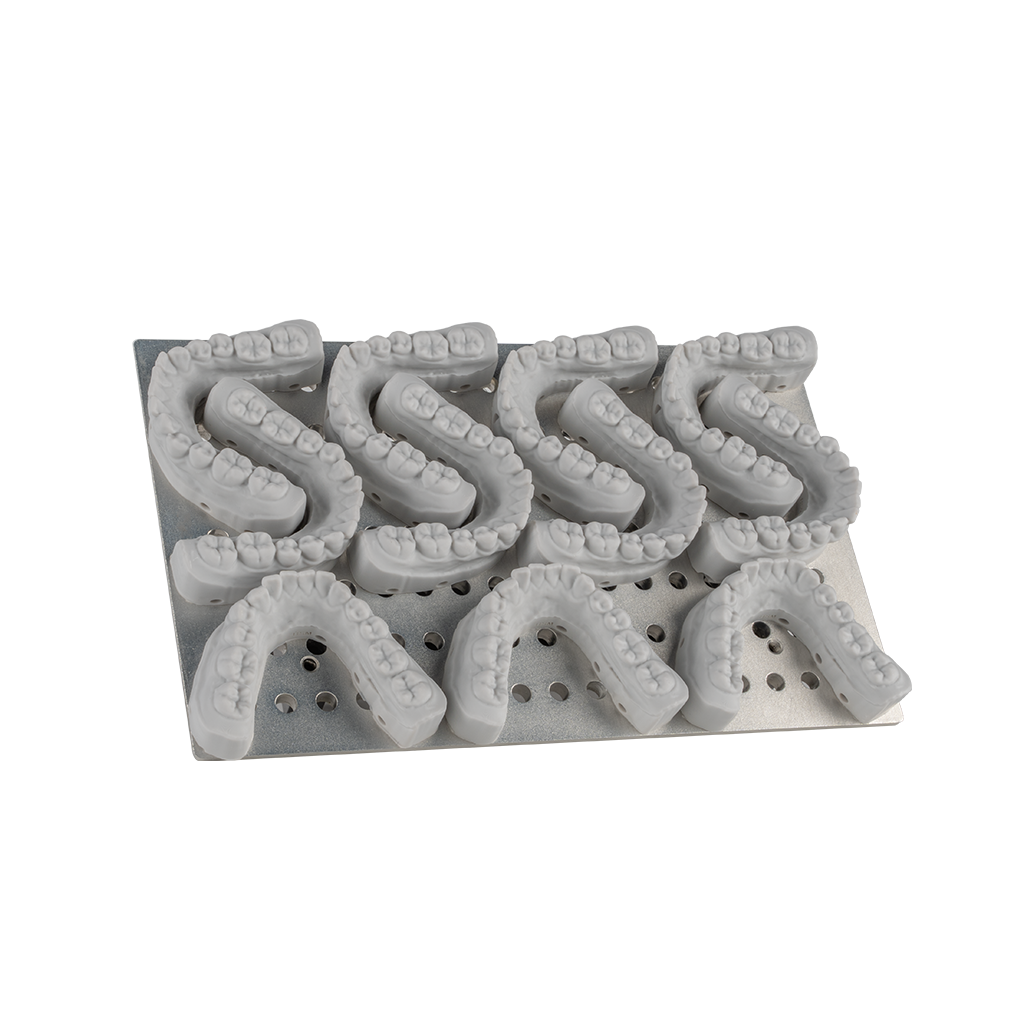

Color grey
Appearance Liquid
Viscosity 290 cps(25℃)
Shrinkage 0.2 %
Exposure curing time (0.05mm/layer)
2-10 seconds (LED light source 405 nm,
Light intensity >1.0 Mw/cm2)
Tensile strength 52 MPa
Tensile modulus 660 MPa
Flexural strength 86 MPa
Bending modulus 2500 MPa
Shore hardness 82 D
Density 1.08 g/cm3
Heat distortion temperature 82 ℃
Notched Izod impact strength 31 j/m
