DWX-52DI Plus
offer
until December 31, 2025
DWX-52Di Plus Complete Package
– 5-axis dry milling machine
– 15-position tool changer
– Clamping aid for tools
– Car calibration equipment and accessories
– BOFA extraction and compressor cart
– MillBox Eco
– Vpanel Hub (PC with arm directly attached to machine)
– Master kit (14 milling tools – starter set)
Optional at offer prices until December 31, 2025
On-site installation & training – service provided by DGShape: 1.000,00 €
MillBox Instruction and training, remote: €1,000.00
White Glove Transport (DE): €690.00
– Transport to installation site
– Unpacking the devices
– Collection and disposal of packaging
Please note that all prices quoted are net prices, plus statutory value added tax.
21.200,00 € excl. VAT
Description

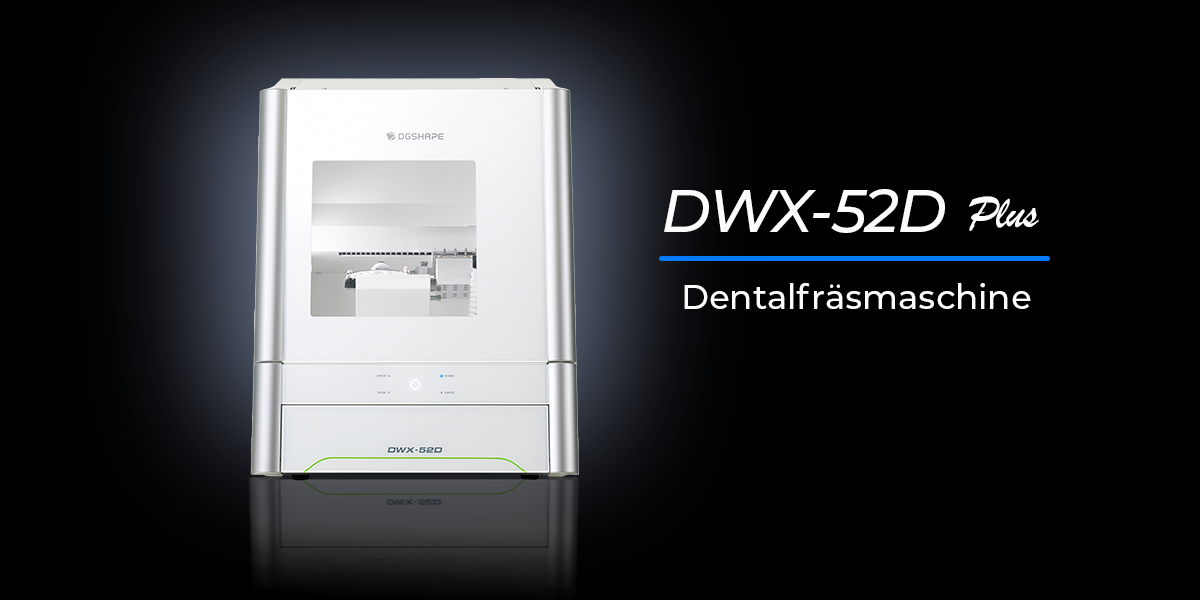

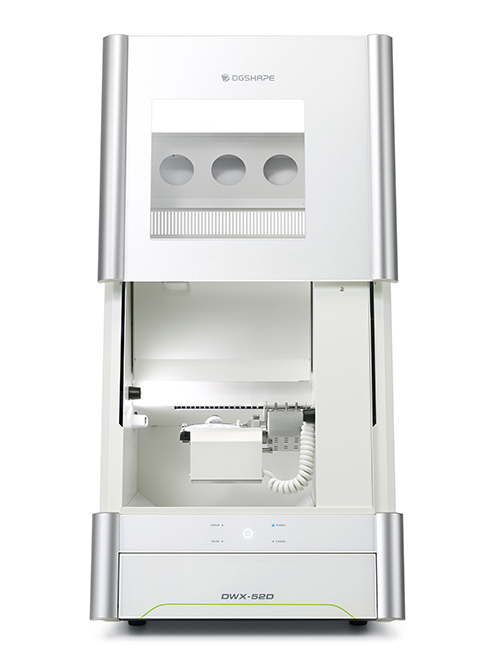

The DWX-52Di Plus's 5-axis milling technology is cost-effective without compromising on quality. It offers a precise and efficient solution for dental prosthesis manufacturing, allowing users to produce a wide range of restorations such as crowns, caps, bridges, inlays, onlays, veneers, abutments, implant bars, and screw-retained crowns.
The improved, user-replaceable spindle and C-clamp are also compatible with disc and pin materials, increasing the machine's efficiency and versatility.
| Machinable material*1 | Zirconium, wax, PMMA, composite resin, PEEK, PEKK, plaster, glass fiber reinforced resin, CoCr sintered metal, polycarbonate | |
| Shape of the loadable workpiece | disc type | Appearance: 98.5 mm (3.88 in.) (diameter), height 10 mm (0.39 in.) |
| Body part: 95 mm (3.47 in.) (diameter), height max. 60 mm (2.36 in.) | ||
| Pen type | Pen diameter: 6 mm (0.24 in.) | |
| *The optional ZV-52D pen material adapter is required. | ||
| Operating speed | XYZ: 6 to 1800 mm/min (0.24 to 70.9 in./min.) | |
| Spindle motor | Brushless DC motor | |
| Spindle speed | 6,000 to 30,000 rpm | |
| Rotation axis movement angle | A: ±360°, B: ±30° | |
| Number of integrated cutters | 15 | |
| Attachable cutter | Shaft diameter: 4 mm (0.16 in.), length: 40 to 55 mm (1.57 to 2.17 in.) | |
| Compatible compressed air | 0.02 to 0.2 MPa | |
| Interface | USB | |
| control command sets | RML-1, NC code | |
| Energy supply | 100 to 240 VAC ± 10 %, 50/60 Hz (overvoltage category II, IEC 60664–1), 2.0 A | |
| Power consumption | Approx. 200 W | |
| Operating noise | During operation: 70 dB(A) or less (when not cutting) | |
| In standby mode: 45 dB(A) or less | ||
| External dimensions | Width × Depth × Height: 495 × 660 × 600 mm (19.5 × 26.0 × 23.6 inches) | |
| weight | 67 kg (148 lb.) | |
| Installation environment | Indoor use at altitudes up to 2000 m (6561.68 ft) | |
| Temperature: 5 to 40 °C, humidity: 35 to 80% RH (non-condensing) | ||
| Pollution degree: 2 (according to IEC 60664–1) | ||
| Short-term temporary overvoltage: 1,440 V, long-term temporary overvoltage: 490 V | ||
| Scope of delivery | Power cord, USB cable, manual, CD with DGSHAPE software package, identification pen, automatic correction gauge, hexagonal screwdriver, wrench (for clamp), wrench (for spindle), milling cutter holder, milling cutter positioner, dust collection hoses, dust collection hose adapter, regulator, air hose, collet mounting device, brush, etc. | |
| *Even if they are made from the materials described, some workpieces cannot be milled due to specifications or physical properties. For more information, please contact your authorized Roland DG Corporation dealer. | ||
| system requirements | ||
| Operating system (OS): | Windows 11 (64-bit version), Windows 10 (32-bit and 64-bit versions) | |
| CPU | Minimum CPU required for the operating system | |
| storage | Minimum RAM required for the operating system | |
| Optical drive | CD-ROM drive | |
| Graphics card and monitor | A monitor with at least 256 colors and a resolution of 1024 × 768 or higher is recommended. | |
